Industrial (Factory Floor) Hygiene Visualization

Project: Display Sound, Light, Oil Mist Sample Readings and Other Industrial Hygiene Sample Data on the Factory Floor

Problem:  Need to display samples with varying intensity in the factory floor bays in order to gain a spatial insight into factory floor environmental conditions.

Solution:  Map display of factory floor sample data using factory floor CAD drawings.


• Provides exceptional visual/spatial insight into shop floor conditions
• Utilizes sample data stored in standard database
• Shop Floor CAD drawings easily usable for rendering sample data

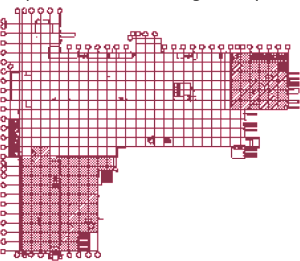

Factory Floor Layout of Bays Taken from MicroStation DGN CAD Drawing

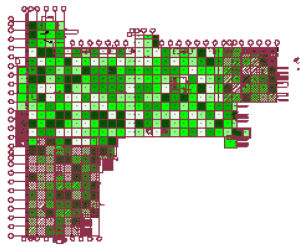

Bays’ Fill Intensity According Sample Value per Bay

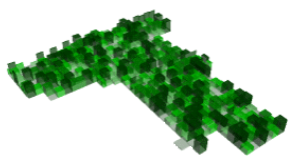

Sample Values Displayed in Bay as a Bar Chart

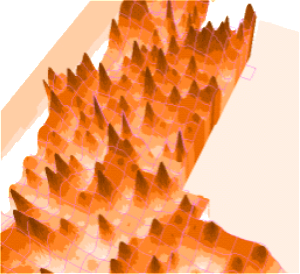

Continuous 3D Surface Display of Sample Light Values

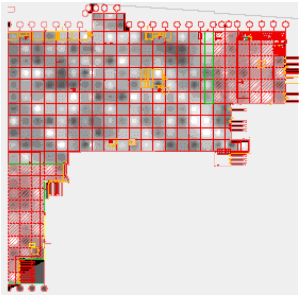

Sample Light Values Displayed as a Continuous Tone Raster Image
